ELECTRICAL PANEL CO2 GAS FLOODING SYSTEM

Name: ELECTRICAL PANEL CO2 GAS FLOODING SYSTEM
Brand: ASHA ENTERPRISE
Price: 30000.0 INR
Availability: InStock

Price 30000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ELECTRICAL PANEL CO2 GAS FLOODING SYSTEM Specification

Mounting Type
Wall/Panel Mounted (for fixed installation).

Shape
Cylindrical (CO2 cylinder); Rectangular (electrical panel).

Fire Extinguisher Type
CO2 gas flooding system (fixed installation).

Operating Pressure
56 bar (at 21C), varies with ambient temperature.

Features
Non-conductive, Residue-free, Instant suppression, No damage to electronics.

Product Type
CO2 FLOODING SYSTEM

Connectivity Type
Wired control; electrical and mechanical actuation.

Control Type
Automatic / Manual (local and remote control options).

Working Temperature
0C to +55C (operating temperature range).

Technology
Total flooding CO2 gas system (automatic/manual discharge).

Installation Type
Wall/Panel mounted adjacent to electrical panel.

Coating Type
Corrosion-resistant epoxy/polyester powder coated.

Coverage Area
Coverage depends on system design; generally 10-100 m2 per system.

Energy Efficiency Rating
Not applicable (system operates only during activation).

Fire Class
Class B & C (suitable for electrical and flammable liquid fires).

Voltage
24V DC/230V AC (for control and alarm panel).

Application
ELECTRICAL PANEL CO2 GAS FLOODING SYSTEM

Max Flow Rate
Varies as per design; typically between 20-30 kg CO2 per minute.

Diameter
Cylinder diameter typically 180-220 mm (varies by capacity).

Capacity
Typically 5 kg, 9 kg, 22.5 kg, up to 45 kg per cylinder (customizable).

Pressure
Stored pressure type, typically 56 bar (at 21C).

Alarm System
Integrated audible and visual alarm on activation.

Extinguishing Agent
High-purity Carbon Dioxide (CO2).

Safety Valve
Integrated pressure relief device for overpressure protection.

Color Code
Red cylinder as per ISI standards.

Detection System
Heat/smoke sensor with electric actuator.

System Activation Time
<10 seconds on sensor detection.

Refillable
Yes, refilled at authorized service stations.

Cylinder Material
Seamless steel, ISI certified.

Approval/Certification
IS: 2878, IS: 2171, and as per NFPA 12.

Discharge Mechanism
Electromechanical valve actuation.

ELECTRICAL PANEL CO2 GAS FLOODING SYSTEM About

A CO2 electrical panel suppression system is a specialized fire protection solution designed to safeguard electrical panels from fire hazards. These systems utilize carbon dioxide (CO2) as the extinguishing agent, which displaces oxygen and effectively smotheres the fire. The system is non-conductive, leaving no residue that could damage sensitive electronic components, and is environmentally friendly. It is highly effective against Class B (flammable liquids) and Class C (electrical) fires, making it suitable for various environments. The system is designed to detect and extinguish fires originating from electrical panels, ensuring maximum safety in mission-critical environments.

Comprehensive Protection for Electrical Installations

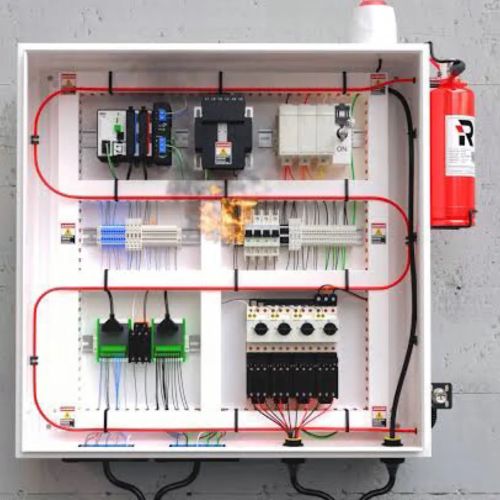

Specially engineered for electrical panels, this CO2 gas flooding system ensures instant, residue-free fire suppression without damaging components or leaving conductive deposits. With customizable cylinder capacities and coverage, it adapts easily to different site needs while maintaining stringent safety standards.

Rapid Detection and Efficient Suppression Technology

Equipped with heat and smoke sensors, the system detects fires within seconds, ensuring swift CO2 release via electric or mechanical actuation. Integrated alarms swiftly alert personnel, helping mitigate potential fire damage and enhancing operational safety.

Certified, Durable, and Easy to Maintain

All cylinders are constructed from seamless steel and carry ISI certification, with corrosion-resistant coatings for longevity. Each unit meets IS: 2878, IS: 2171, and NFPA 12 standards. Refilling and routine servicing are streamlined through authorized service providers.

FAQ's of ELECTRICAL PANEL CO2 GAS FLOODING SYSTEM:

Q: How does the ELECTRICAL PANEL CO2 GAS FLOODING SYSTEM detect and respond to fire incidents?

A: The system uses heat and smoke sensors to detect potential fire threats. Upon detection, it activates electromechanical valves to release CO2 within 10 seconds, providing rapid suppression and minimizing the risk of damage.

Q: What types of fires is this CO2 flooding system suitable for?

A: This system effectively suppresses Class B and Class C fires, making it ideal for electrical and flammable liquid fires. Its non-conductive nature ensures safety for sensitive electronic equipment.

Q: Where should the CO2 flooding cylinders be installed for optimal performance?

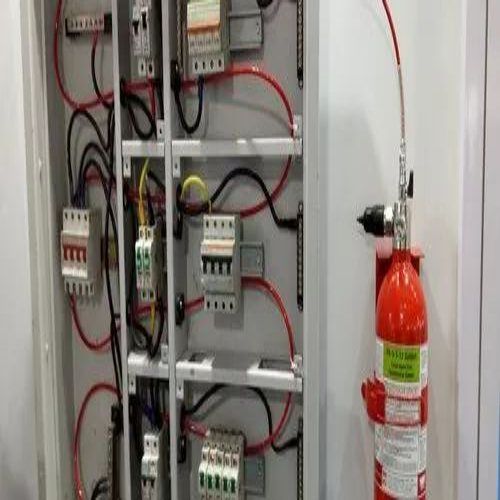

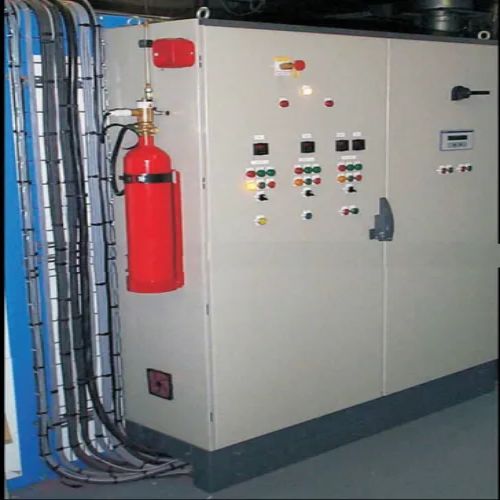

A: Cylinders should be mounted adjacent to or on the electrical panels they protect, in accordance with system design requirements. Wall or panel mounting ensures fast and direct CO2 delivery in case of emergencies.

Q: What certifications and standards does this system comply with?

A: The system features ISI certified seamless steel cylinders and adheres to IS: 2878, IS: 2171, and NFPA 12 standards, ensuring safety, reliability, and regulatory compliance.

Q: What is the maintenance and refilling process for the CO2 cylinders?

A: CO2 cylinders are refillable and must be serviced and refilled only at authorized service stations. Regular checks and refills help maintain the system's reliability and readiness.

Q: What are the key benefits of using this CO2 gas flooding system for electrical panels?

A: This system offers instant, residue-free suppression without harming electronics. It's non-conductive, requires minimal clean-up, meets rigorous safety standards, and can be integrated into both automatic and manual control setups.

Q: Who can install or service this CO2 gas flooding system?

A: Installation and periodic servicing must be handled by qualified professionals authorized by the manufacturer or distributor to ensure compliance with safety standards and proper functioning.
